Description

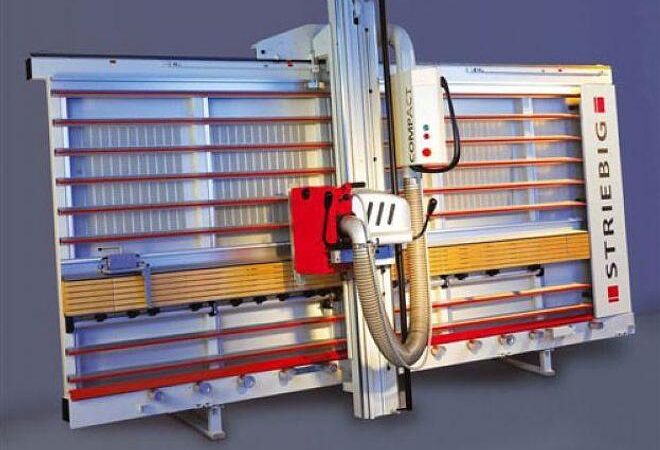

• One-piece fully welded frame, able to floor or wall-mount. • 10’2” x 5’5” cut capacity; 2-3/8” cut depth • Heavy-duty support rollers with integral panel stop • Full-length mid-shelf with adjustable spacing for aluminum fingers and built-in wood small parts support area • Auto, upward-shifting aluminum support grid w/plastic laths • NEW highly efficient dust system, enclosed in cable chain • 5-1/4hp, 208-480V, 3 motor with electric brake • 250mm carbide saw blade for 2-3/8” depth of cut – Specially designed measuring flip stop for use with small parts • Template bar accepts optional stops for common rip cuts • Optional true split-blade scoring saw available (& retrottable) • Optional locking rollers, foot-pedal operated (factory ordered)  Cut capacities:  10’2″ W x 5’5″ H; depth 2-3/8″ (60mm) Weight (approx.):  1100 lbs. (net), 1600 lbs. (gross) Main Saw Blade:  250 mm dia., 30 mm bore with (2) 7 mm pin holes (42 mm circle) Scoring Saw Blade:  (option) 80 mm dia., 20 mm bore split-blade type w/shims Electrical:  3 phase, 220V/20 Amp or 440V/10 Amp service *208V and 280V motors available Dust collection:  1000 cfm, 100 (x2)mm connections (second connection at bottom right corner of frame is optional and hose is not provided.)
