Description

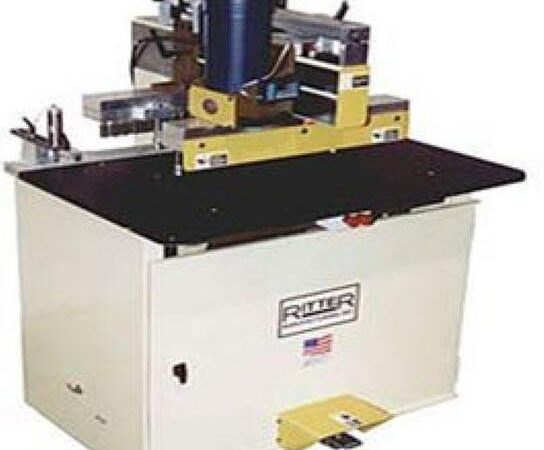

Line Borer, 46-Spindle Ritter Machinery Model #R-46 Double Row 46-Spindle Line Boring machine, (2) Rows of 23 Each, 32mm Centers on Drill heads, (2) 3HP Spindle Motors, 230 volt, 3-phase (2) 3 HP Spindle Drive Motors, TEFC (2) 23-Vertical Gear Driven Spindle Rows 32mm Spindle Centers 10mm Bored Collets (24) Right Hand, (22) Left Hand 4″-24″ Centers Between Rows Digital Readout Front Head Position Display Precision Linear Head Ways (3) Quick Set Drill Head Position Stops Rear Drill Row Nesting 48″ Back Fence with (2) Stops (2) Air Index Pins (2) Position Drill Depth Stop Turret 30″ X 48″ Work Table Surface Wired 3-Phase 240/480 Volt, 60 Hz. Foot Actuated Boring Cycle Tooling Not Included Crated Dimensions: 54″ X 54″ X 76″ and 1,341 Lbs Designed and Manufactured in the USA Additional options for this machine include: H259 – Digital Rear Head Location Display H906 – Quick Change Drill Chucks U4662 – Additional Fence Stops U4680 – Air/Oil Table Feed
