Description

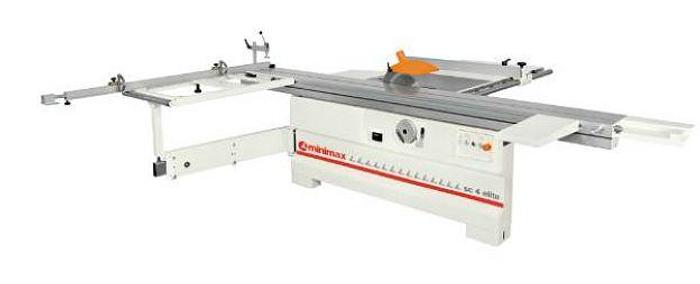

Sliding Table Saw, 8.5′ New SCM/MiniMax Model #SC4 Elite Series Sliding Table Saw machine, 8.5′ Sliding Table saw, 4.8HP Main motor unit with Scoring. 220 volt, 1-phase machine. Standard Equipment Solid cast iron saw unit with double support trunions Aluminum sliding table and rail with hardened steel guide-ways European-style rip fence with cam lock, micro-adjustable Round steel guide bar for rip fence Telescoping crosscut fence with two adjustable flip stops Eccentric panel clamp 2-position sliding table lock Table extension on saw out-feed Scoring blade (Adjusted Independently of Main Blade) 3/4″ dado capacity Tool set & manual “CSA”-rated electrical components, including cables Specifications Sliding Table Size11.4″ x 106″Fixed Table Size33″ x 22″Table Height35″Max Cutting with Rip Fence50″Sliding Table Stroke with Scoring106″Main Blade Arbor Size5/8″Scoring Blade Diameter / Arbor Size100 mm / 20 mmMain Blade Speed4,000 RPMScoring Blade Speed8,000 RPM Electrical & Dust Extraction Requirements 1ph, 4.8hp Standard 3ph, 6.6hp Optional Single-phase: 24 amps, 230v, 10 AWG CU THHN wire Three-phase: 18 amps, 230v, 12 AWG CU THHN wire (Special Order) Dust outlet diameter, main port: 4 3/4″ Dust outlet diameter, overhead blade guard: 2.5″ Dust extraction volume: 1,000 CFM
