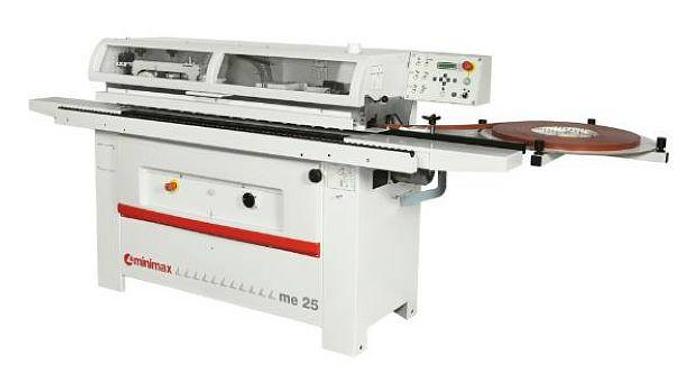

Description Maximum versatility: gluing, end cutting with blade and trimming, together with the possibility to equip the machine with scraping and brushing units. Semplicity and precision: automatic positioning of all operating units synchronised with presser lifting and based on the panel thickness. High-precision panel feed on a high-adherence belt with a top presser fitted with rubber wheels. Easy-to-use in all working conditions with the control panel on the machine front side. Specifications ME 25 Specifications Working Table Dimensions102.36 x 20.86 inWorking Table Height35.6 inMin. / Max. Panel Thickness.47 / 1.96 inMin. / Max. Panel Thickness Using the Scraping Unit.63 / 1.96 inThickness of Rolled Edges0,4 / 3 mmMax. Thickness of Edges in Strips0.20 inMinimum Panel Length/Width7.48 / 2.55 inFeed Speed22.96 ft/minPneumatic Operating Pressure6.5 barEdge Roll Plate Diameter28.75 inExhaust Outlet Diameter 4.72 in Glue Pot Unit Motor Power 1.2 kWOperating Temperature20 / 374°FGlue Capacity~ 0.5 kg End Cutting Unit Motor power0.37 kWEnd Cutting BladeØ 3.54 in Z20Blade Rotation Speed12,000 rpm Trimming Unit Motor Power0.75 kWCutters Rotation Speed12,000 rpmWidia CuttersØ 2.83 in Z4 Brushing Unit (option) Motors Power (n.2) 0.14 kWRotation Speed2800 rpm
