Description

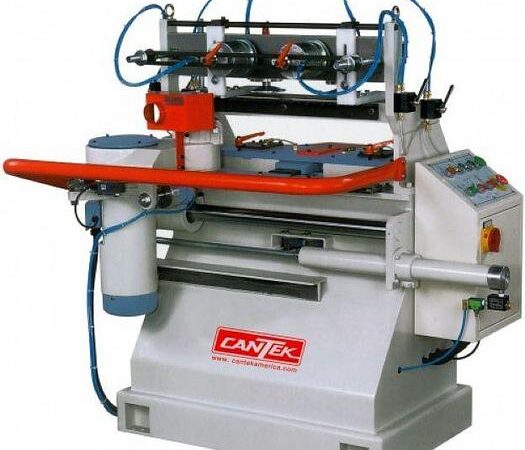

Automatic Dovetailer, 2HP New Cantek Model #JDT-75 Automatic Dovetail Machine, Single Spindle Automatic machine, 2HP Main Motor, 230 volt, 3-phase machine. 21500 RPM spindle rotation for an extremely fine finish on dovetail joints High RPM spindle allows for precision machining of plywood & solid drawer sides Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints Dust hood for milling cutter Safety rail in front of spindle motor High quality pneumatics for smooth feeding, resulting in quality cutting Cast iron base to ensure vibration free cutting Automatic lubrication system to spindle stroke 3 cycle speeds for best finish results WORK PIECE DIMENSIONS Working lengthmin: 7.87″ max: 59″Working widthmin: 2.36″ max: 16.93″Vertical material thickness0.275″ to 2.36″Horizontal material thickness0.394″ to 1.18″
