Description

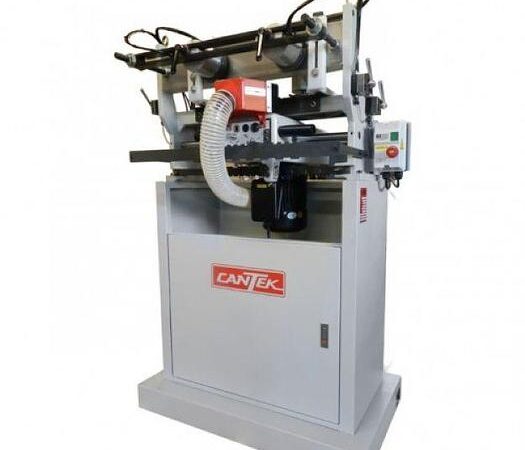

Dovetailer Machine New Cantek Model #JDT-65 Manual Dovetailer machine, Single Spindle machine, 1HP Main Motor, 220 volt, 1-phase machine. Ideal for drawer production and furniture parts which require high quality dovetail joints. Max. workpiece size 59″ x 16 ½” Workpieces are clamped by air clamps. Enclosed-type stand. Equipped with an indication bar for indicating cutting position. Tenon width can be micro-metrically adjusted in 2 mm. Tenon and mortise depth are conveniently adjusted according to the thickness of worpiece. Equipped with one four-sided template providing four types of pitches between dovetails. Standard pitch 1″, 1 ½”, 2″ and 2 ½” (Other sizes available on request) The spindle accommodates 12 mm T.C.T. cutter bit.
